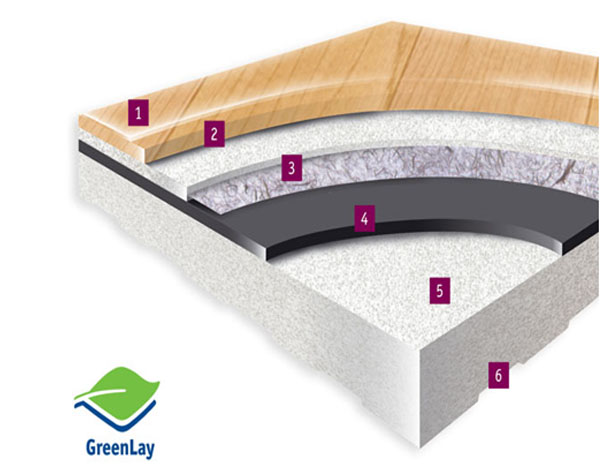

Ergo Mat 6.5 mm is a heterogeneous vinyl floor, meaning that it consists of multiple layers. Each layer or coating has unique function, such as increasing dimensional stability, reducing maintenance, increasing longevity, or providing sports performance and shock absorption. When these layers are combined using virtually tension-free manufacturing process, the result is the ideal multi-use floor purpose. The unique properties of Ergo Mat 8.3 mm allow it to be installed with the popular GreenLay™system GreenLa y™ is 98% adhesive-free installation method that offers faster installation, higher moisture tolerances (92% RH per ASTM F2170), and easier recycling.
Width | ------ | 5’ (1.5 m) |
Length | ------ | 32’8” (10 m) |
Wear Layer | ------ | 2 mm |
Total Thickness | ------ | 6.5 mm |
Wear Layer | Type 1– Grade 1 | ASTM F1303/F410 |
Vertical Deformation | PASSED | ASTM F2772 |
Rolling Load | PASSED | 0.30 (EN 1569 {11/1999}) |
Surface Finish Effect | PASSED | ASTM F2772 (80 – 110) |
Chemical Resistance | OK | ASTM D543 |
Impact Resistance | PASSED | EN 1717 |
Abrasion Resistance | PASSED | 0.10 (EN ISO 5470-1 {06/1999}) |
Static Load Limit | PASSED | ASTM F970- Load 200Lbs. |
Sound Insulation | Excellent | +/= 19 dB (ISO 717/2) |
In Room Sound Insulation | Excellent | 61dB (NF S31-074) |
Ball Rebound | PASSED | ASTM F2772 > 90% |
Shock Absorption | PASSED | ASTM F2772 Class 2 |
Fire Rating | PASSED | ASTM E648 Class 1 |
Microbial Assays Test | No Growth | G21 ASTM – Backing |
Allergy and Asthma Friendly | ASP: 05-01/101 | Certified Compliant |
Phthalate Free technology | ------- | YES |
REACH Compliant | ------- | YES |
Formaldehyde | ------- | NO |
Hazardous Material | ------- | NO |
ISO 9001 | ------- | YES |
ISO 14001 | ------- | YES |
Moisture Tolerance | No Limit | ASTM F2170 |
Ergo Mat polyurethane treatment reduces cleaning and maintenance by simplifying the process and even eliminating steps. There is no need for applying waxes or other surface treatments, just sweep, wash, andrinse.
Be sure to consult with your local cleaning supplier for cleaners and equipment. ERGO does not assume liability for damage caused by improper cleaning methods or the use of chemicals. Confer also with your flooring provider for more information.
Auto-Scrubbing is more effective and efficient for large areas. Use a diluted neutral cleaner and rinse thoroughly to avoid heavy residue build up. Higher PH cleans can be used periodically for heavily soiled areas. White pads should be used for regular maintenance, while red pads can be used for periodic deep clean.
Dry mopping or sweeping removes dust and dirt. Use yarn mops, micro-fiber mops, or soft bristled brooms, and avoid treated dust mops.
Treat stains immediately. Handle spots using a white rag with mineral spirits or neutral detergent. Solvents should not be used.
Wet mopping removes soil and other contaminants. Use a diluted neutral cleaner and rinse thoroughly to avoid heavy build up of residues.
